Product details
USES:

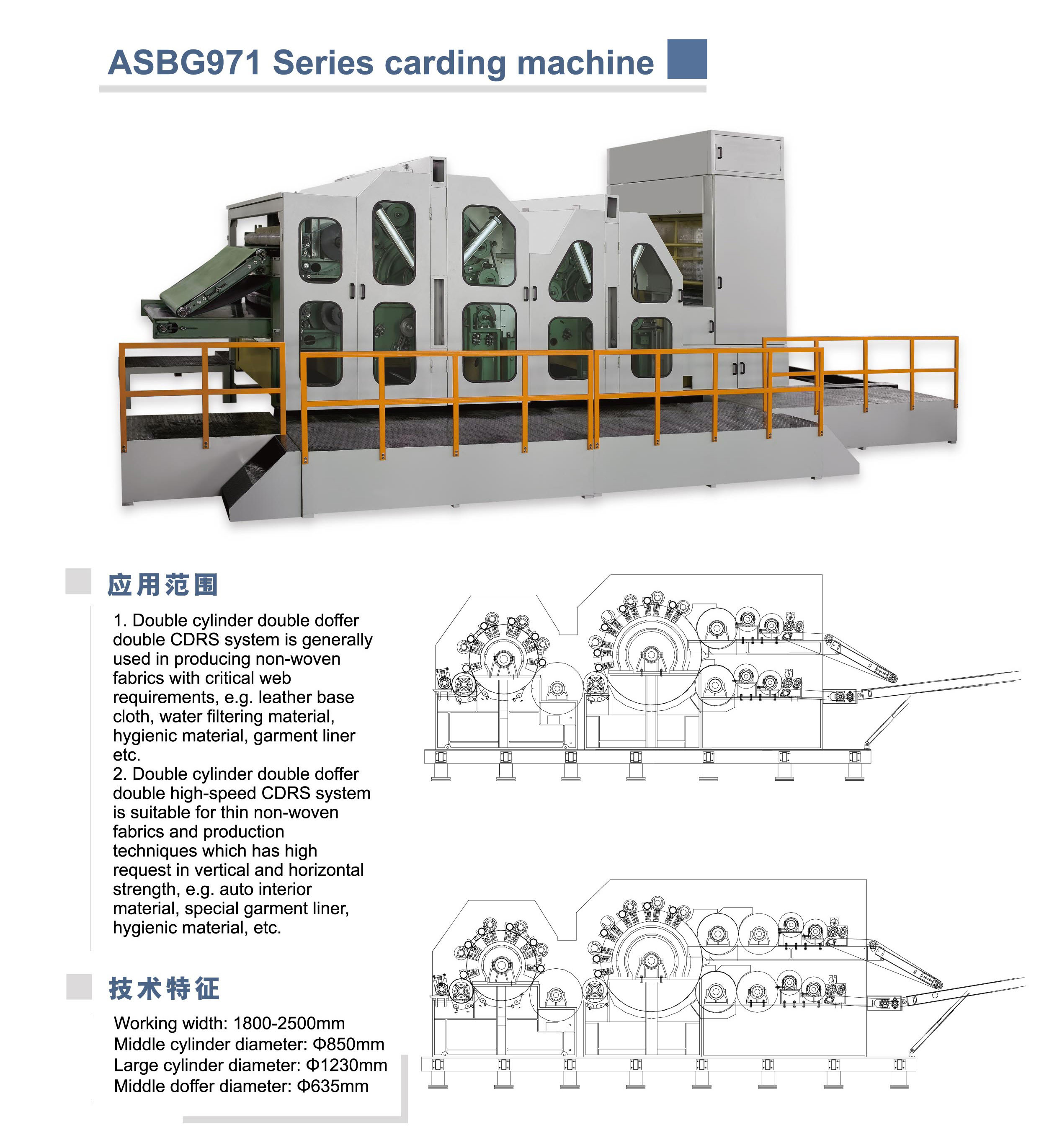

This machine is the main ChanYuanJi in nonwoven production line, especially suitable for high grade line to fully open pine processing fiber (include polyester, viscose, nylon, polypropylene fiber and other fibers) length of 38 mm - 70 mm, fineness of 1.5 D and 6 D of chemical fiber and blended material after combed through fully become a uniform distribution of fibres, for the use of next working procedure.
Technical features:
1. Double silin and double doffer high speed combing, so that the fiber is fully combed and the cotton net is more even.
2. Double bearing enclosed bushing, high precision, basically no shaft head wound
3. Central air suction, balance internal air pressure and suction system.
4. Stainless steel dust rod type leaky bottom.
5. The whole machine adopts touch screen centralized control and frequency converter.
6. High platform and protection column cylinder, open and close the cover.
Main specifications:
Machine width: 1550mm 1800mm 2000mm 2300mm 2500mm
Main cylinder: 1230mm + 8 (frequency control)
Central xilin: 850mm + 8 (frequency control)
Middle doffer: 635mm (transfer)
Output speed: ≤80m/min
Feeding form: roller or feeding board
Double cylinder, double doffer, double clutter
